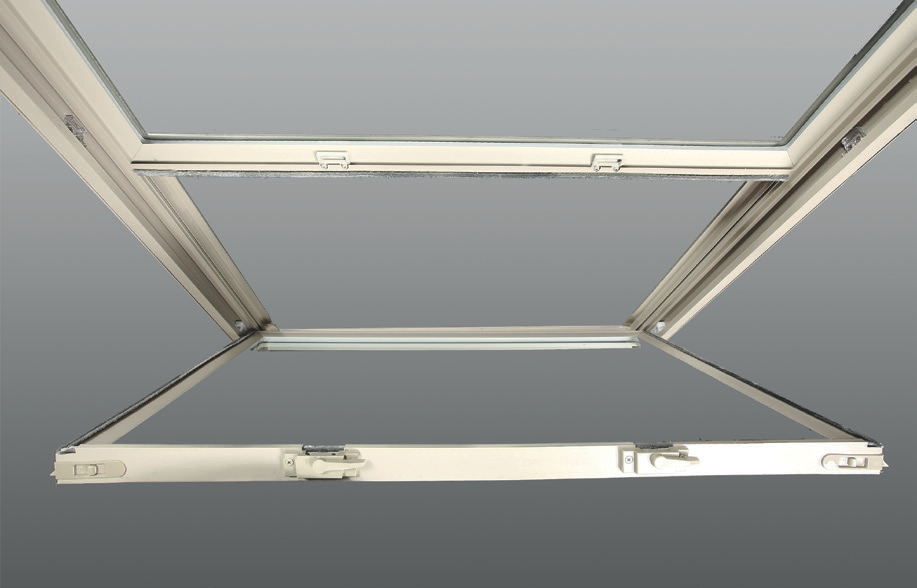

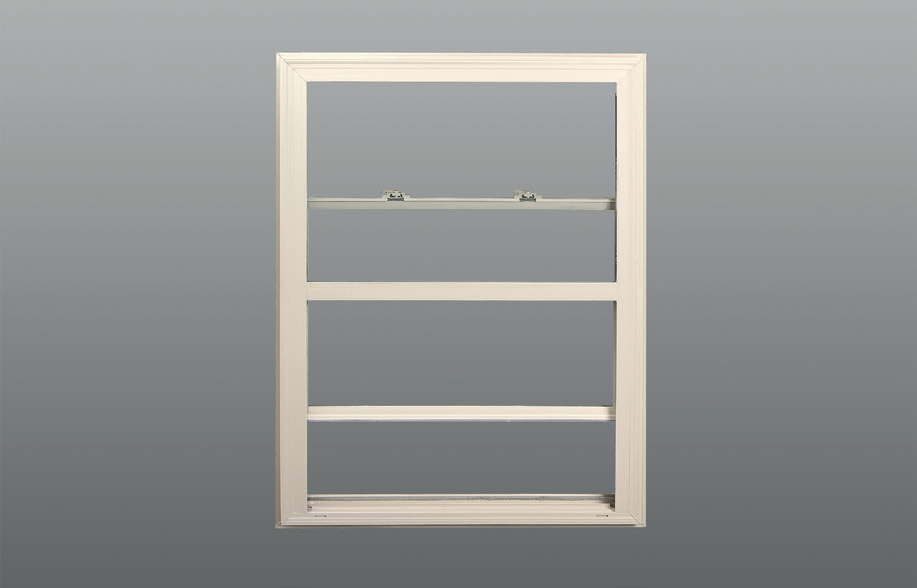

The 75 Series Single Hung Vinyl Window is designed for performance and ease of use. It features a pre-punched integral nail fin for quick, hassle-free installation and offers an optional drywall pass-through configuration. The smooth-operating, maintenance-free block and tackle balance ensures reliable performance, while the tilt take-out bottom sash allows for effortless cleaning. A sloped sill design provides positive water drainage, enhancing durability and long-term protection.
High Performance Features & Benefits
Premier Craftmanship
- Brickmould face for an attractive wood look with integral “J” channel for convenient economical siding return
- Single Hung Window meets AAMA Grade 50 Performance & above. See our website for additional performance data
- Metal reinforced meeting rail and sash with true interlock system for added strength & security
- Interlocking sweep lock with hidden zinc keeper for added security (passes forced entry test)
- Geometric & architectural shapes
- Standard continuous head & sill factory mulling
- Limited Lifetime Warranty
Strength & Insulation
- Sealed insulating glass with warm edge metal free insulating glass system maximizes thermal performance & reduces condensation
- Dual felt wool pile weather stripping for maximum air leak protection with foam filled bulb seal at bottom of operating sash
- Fusion-welded corners along with double wall frame provides added strength & insulation
Glass Options
Choose from a variety of glass options to meet your aesthetic & performance needs, including Low-E, obscure, tempered, & rain glass. Available configurations include:
- Simulated Divided Lite (SDL): 1-1/8”
- Grids Between the Glass (GBG): 3/4” flat grids available
- Insulating Glass (I-G): 3/4” standard
Add-Ons
- Insect screen available
- WOCD’s available
- Dual lift handles
- Oriel configurations available
- Optional field mullion for added flexibility
- ADA locks available
Choose Your Style

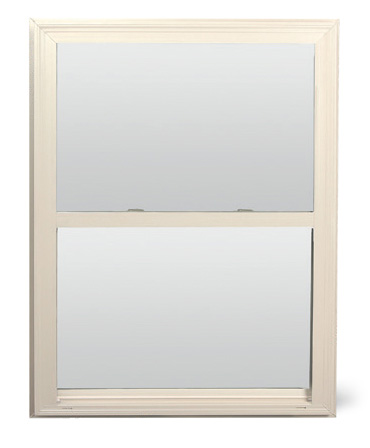

No-Grid
Colonial
Half Colonial
Perimeter
Prairie
*The grid patterns shown above are just a small sample of the styles and configurations. Consult your Finestra Window & Door Sales Representative when ordering for a more complete selection of grid styles available.
Thermal Performance
| Style | U-Value LoE/Argon Surface #2 |
U-Value LoE/Argon Surface #2 & #4 |
R-Value LoE/Argon Surface #2 |
R-Value LoE/Argon Surface #2 & #4 |
SHGC No Grids |
SHGC With Grids |
|---|---|---|---|---|---|---|
| 75 Single Hung | 0.29 | 0.25 | 3.45 | 4.0 | 0.22 | 0.20 |
Structural Performance
| Air Filtration @ 25 mph | 0.03 cfm/ft² |
| Water Penetration | 7.50 psf |
| Uniform Loads | + / – 75.0 |
| Rating | PG 50 – H |
Colors
We offer a range of colors and finishes to enhance, define and personalize your space - allowing you to achieve the perfect balance of function and style.
- Vinyl
White
Almond
Clay
- Laminated
Bronze- Black
Certification Quality Attestations Certification guarantees that the requirements set by regulations and international standards regarding product conformity, services, processes and systems have been met. Finestra products are designed to withstand the American climate. We comply with the market standards and are members of the National Fenestration Rating Council (NFRC).
